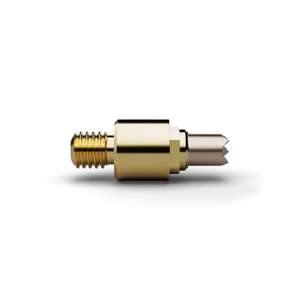

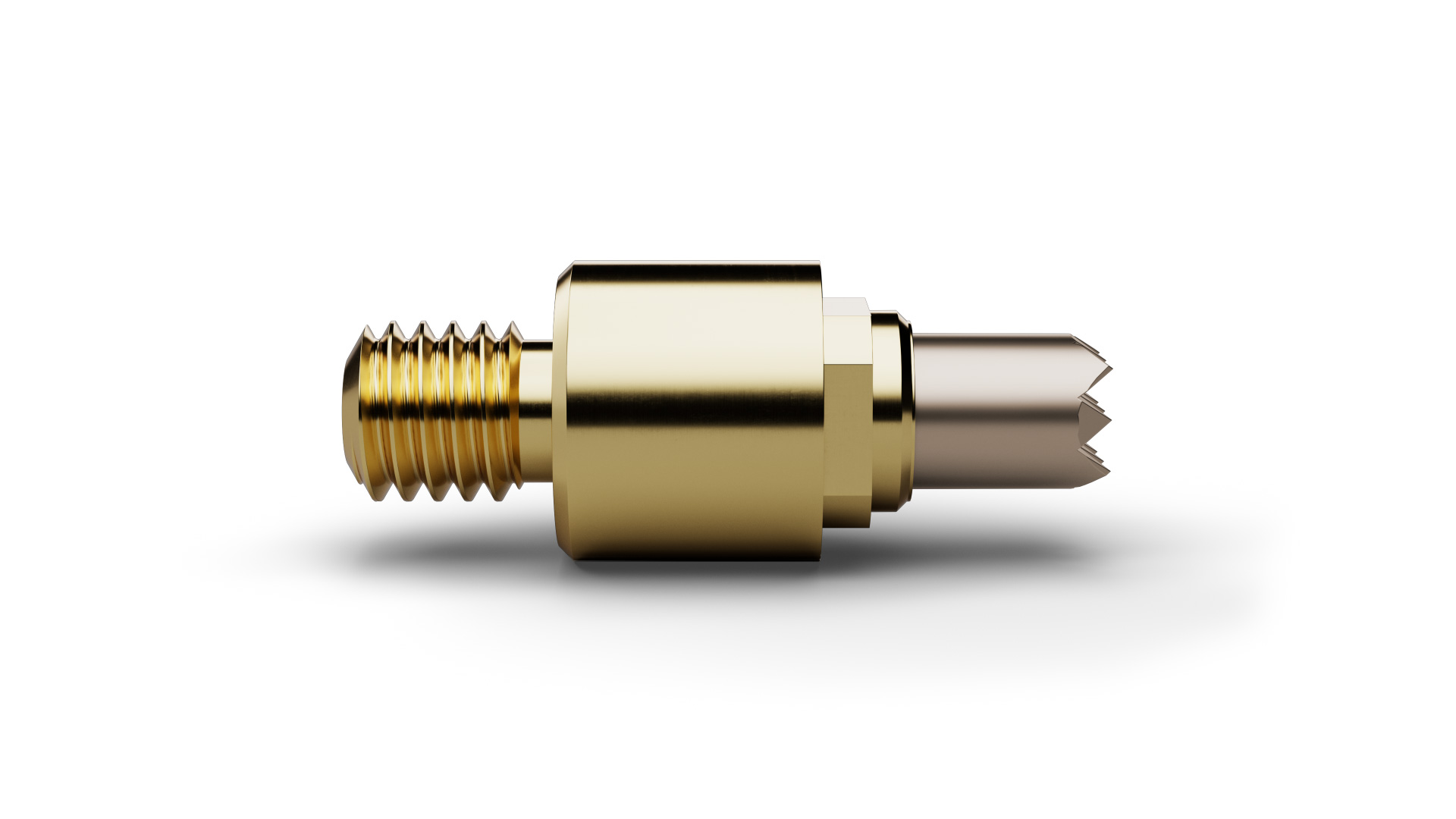

Technical data

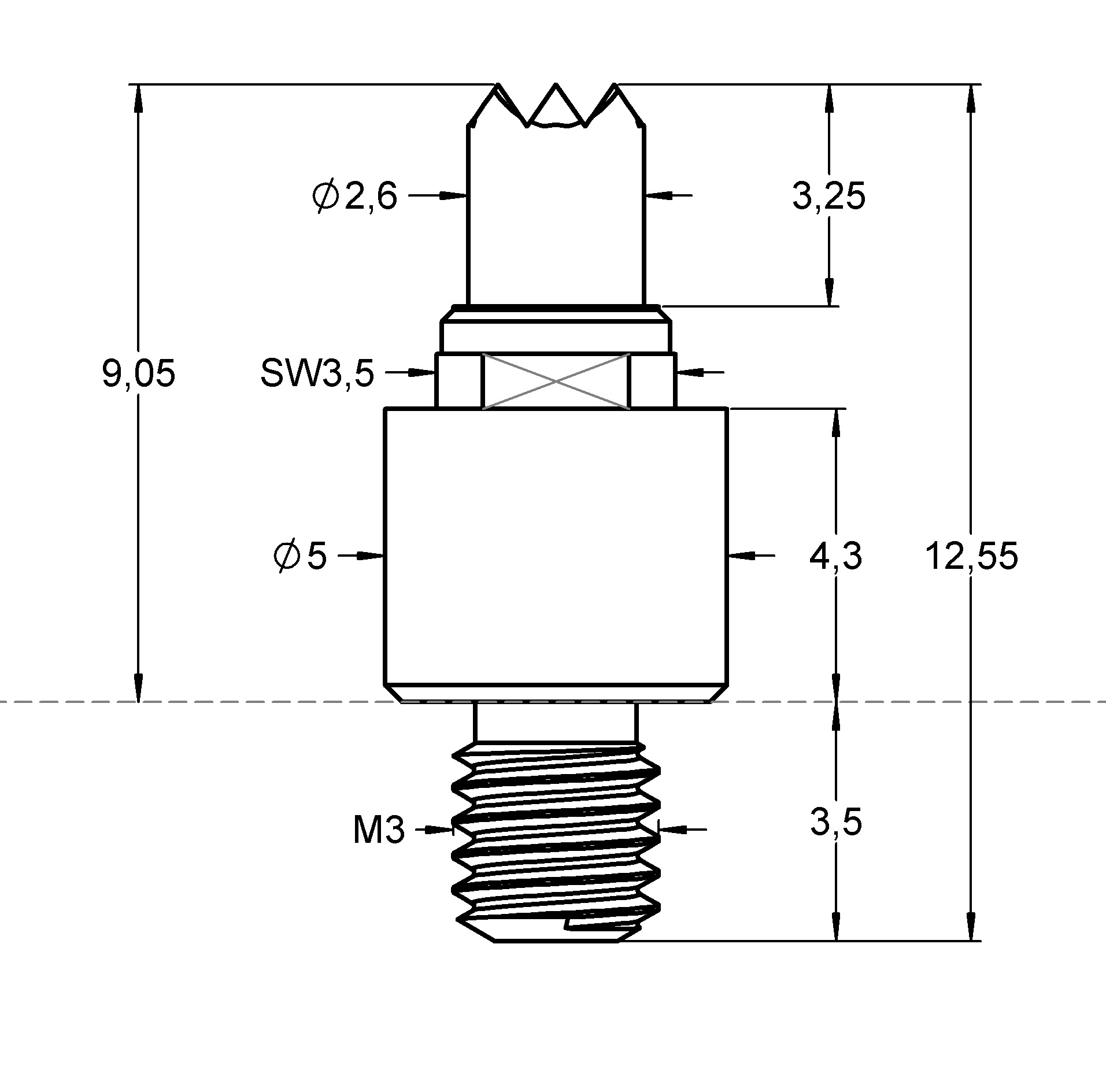

| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | P / P500-L126 |
| Pitch (mm/mil) | 5,50 / 216 |
| Dimensions | |
|---|---|
| Total length (mm) | 12.55 |
| Protrusion height (mm) | 9.05 |
| Tip style diameter (mm) | 2.6 |
| Barrel diameter (mm) | 5 |
| Collar diameter (mm) | 4.1 |
| Press ring diameter (mm) | 4.1 |
| Materials and surfaces | |
|---|---|

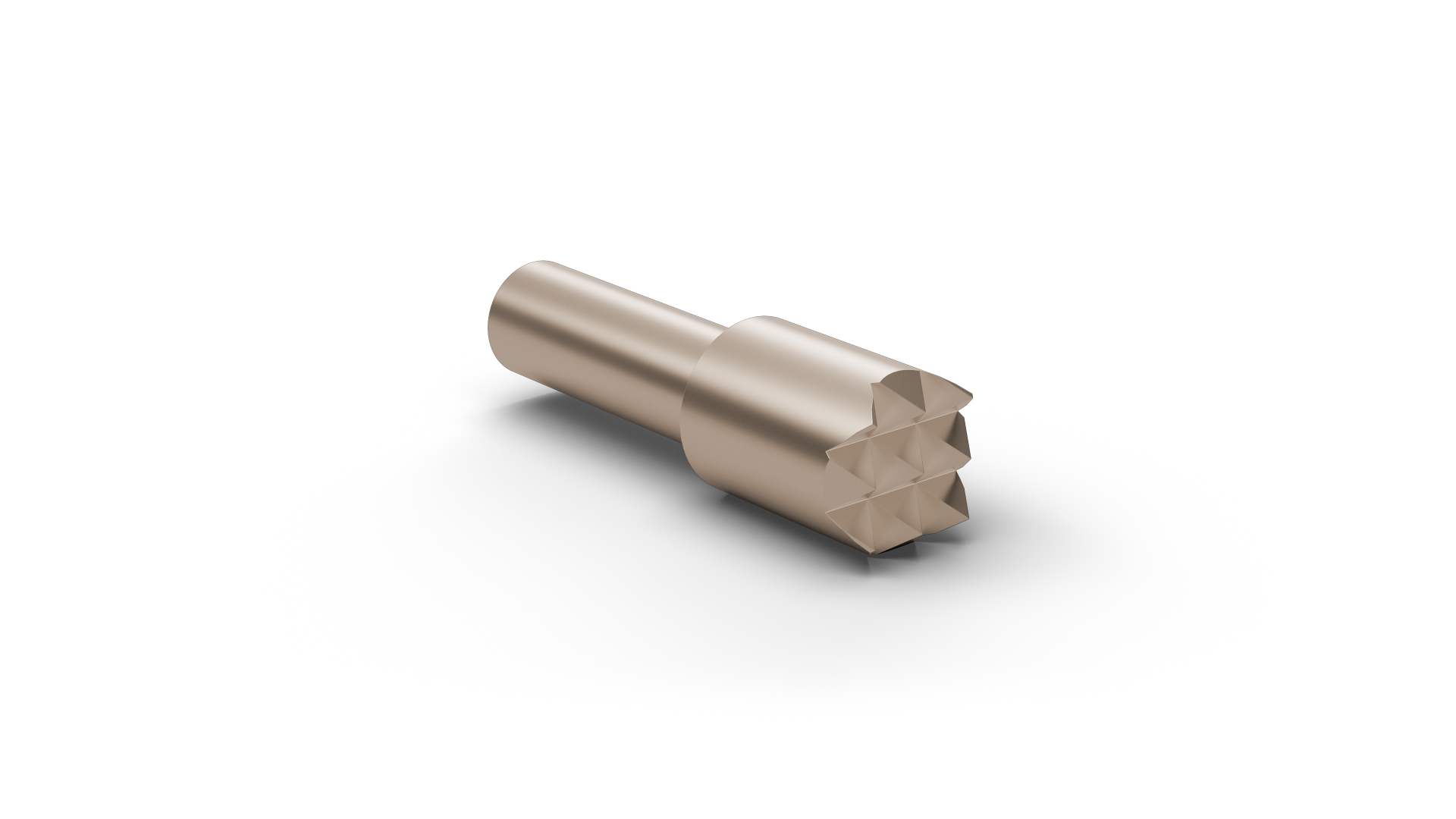

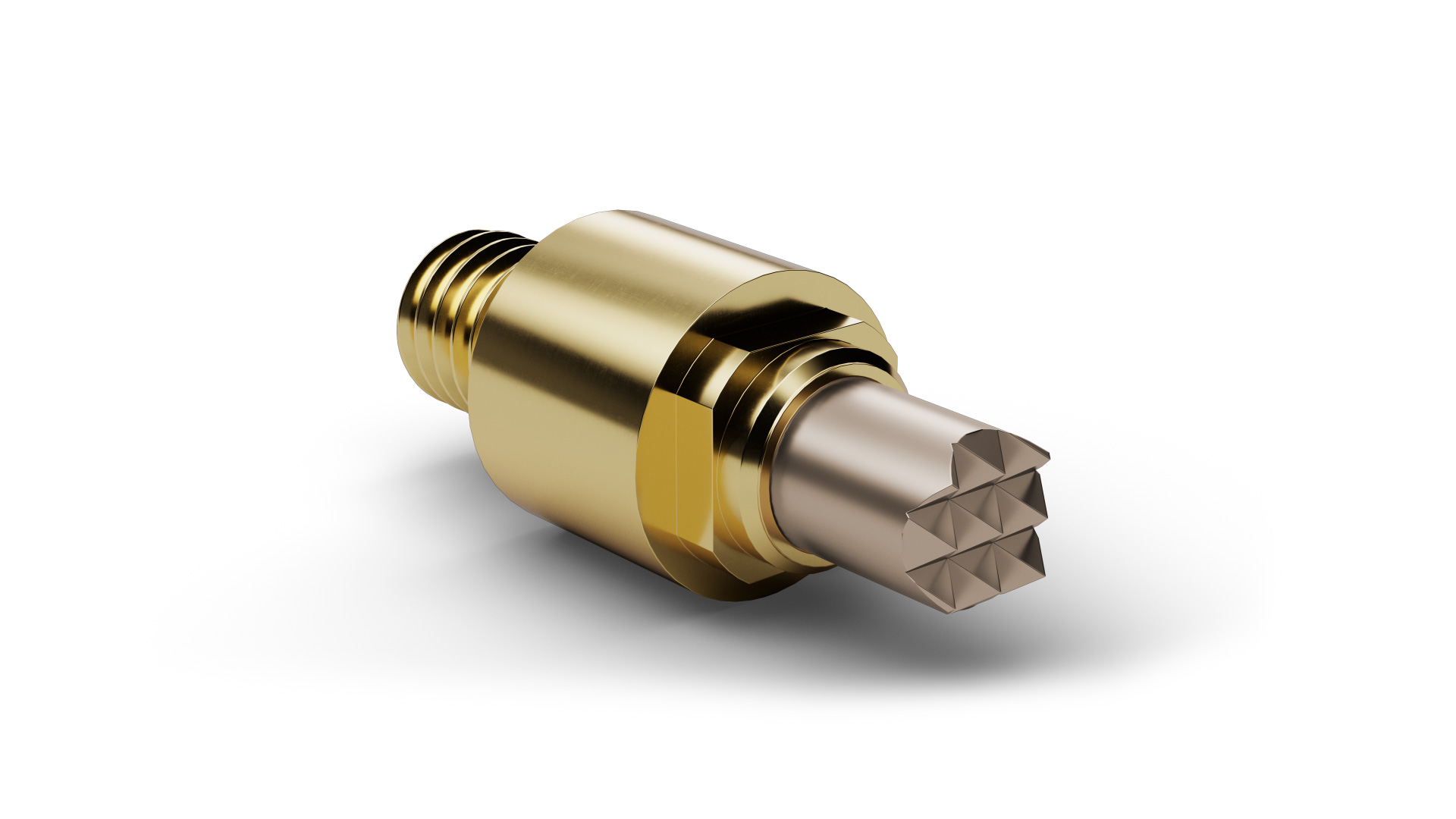

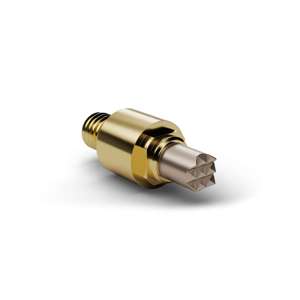

| Tip style | 06 |
| Plunger material | Steel |
| Plunger plating | Rhodium |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 100 |
| Spring force (cN) | 200 |
| Nominal travel (mm) | 2 |
| Maximum travel (mm) | 2.2 |
| Pointing accuracy +/- (mm) | 0.2 |
| Thread | M3 |
| Tool size (mm) | 3,5 |
| Connection | Thread |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 20 |
| Typical contact resistance (mOhm) | 30 |
