Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F756 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+200°C |
| Dimensions | |
|---|---|
| Total length (mm) | 41.6 |
| Protrusion height (mm) | 10.3 |
| Tip style diameter (mm) | 1.1 |
| Barrel diameter (mm) | 1.64 |
| Collar diameter (mm) | 2.3 |
| Materials and surfaces | |
|---|---|
| Tip style | 82 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 100 |
| Spring force (cN) | 300 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 4.4 |
| Pointing accuracy +/- (mm) | 0.08 |
| Thread | M1,6 |
| Tool size (mm) | 1,7 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 30 |
Graphics
Beschreibung des Produkts

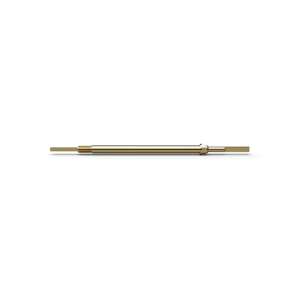

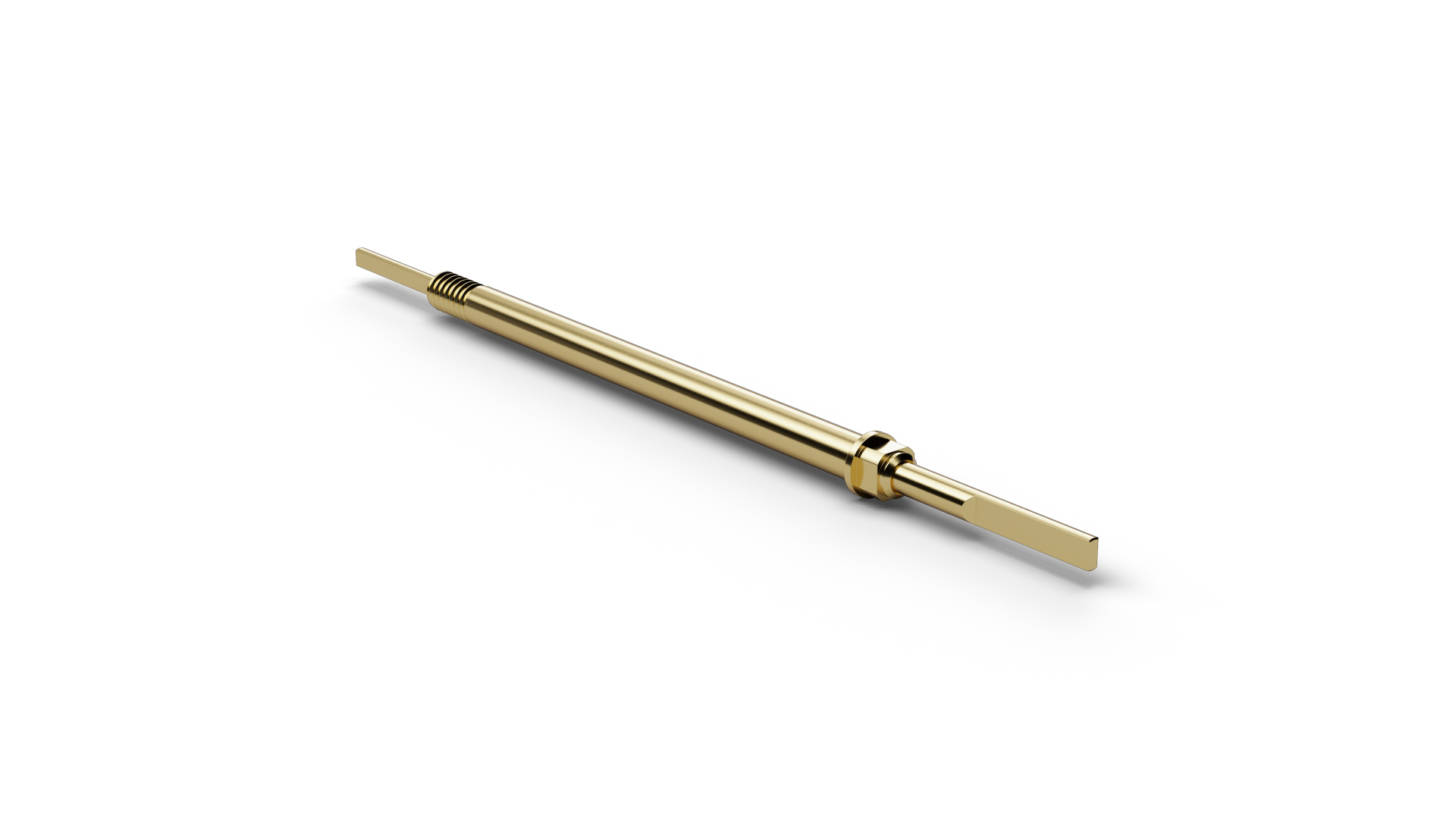

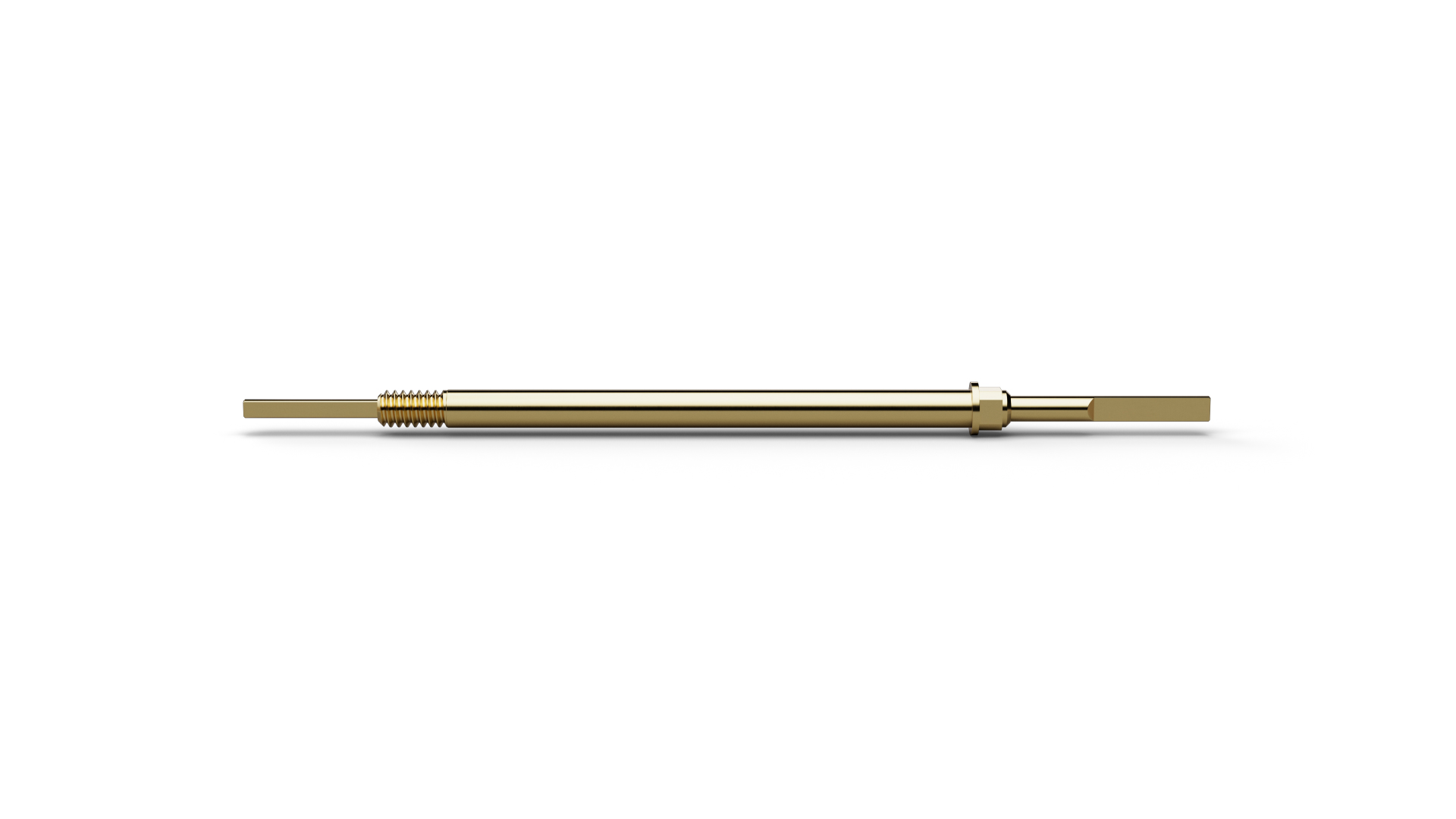

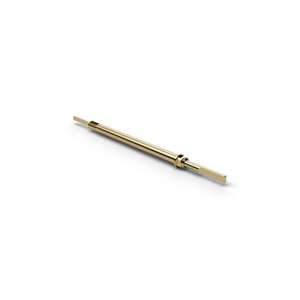

The Twist Proof Probe F75682B0001G300 (item number 1139479) is designed for connector tests where the orientation of the contact geometry must remain defined. On F75682B0001G300, tip style 82 (SpadeØ = plungerØ) supports twist-proof contacting of connector elements whose orientation must be maintained in the test fixture. The design combines a pitch of 2.54 mm / 100 mil with tip style 82 (SpadeØ = plungerØ) and a tip diameter of 1.1 mm. F75682B0001G300 operates with 300 cN spring force and 4 mm nominal travel. The continuous-current rating of F75682B0001G300 is 5 A.
