Technical data
| General | |
|---|---|
| Type/family | 860 |
| Temperature | -45°C...+150°C |
| Dimensions | |
|---|---|
| Total length (mm) | 42.45 |
| Protrusion height (mm) | 23.25 |
| Tip style diameter (mm) | 2.5 |
| Collar diameter (mm) | 3 |
| Materials and surfaces | |
|---|---|
| Tip style | 84 |
| Tip style material | Bronze |
| Tip style plating | Nickel |
| Plunger material | Brass |
| Plunger plating | Nickel |
| Mechanical specifications | |
|---|---|
| Tool size (mm) | 2,5 |
| Connection | Solder Connection |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 1 |

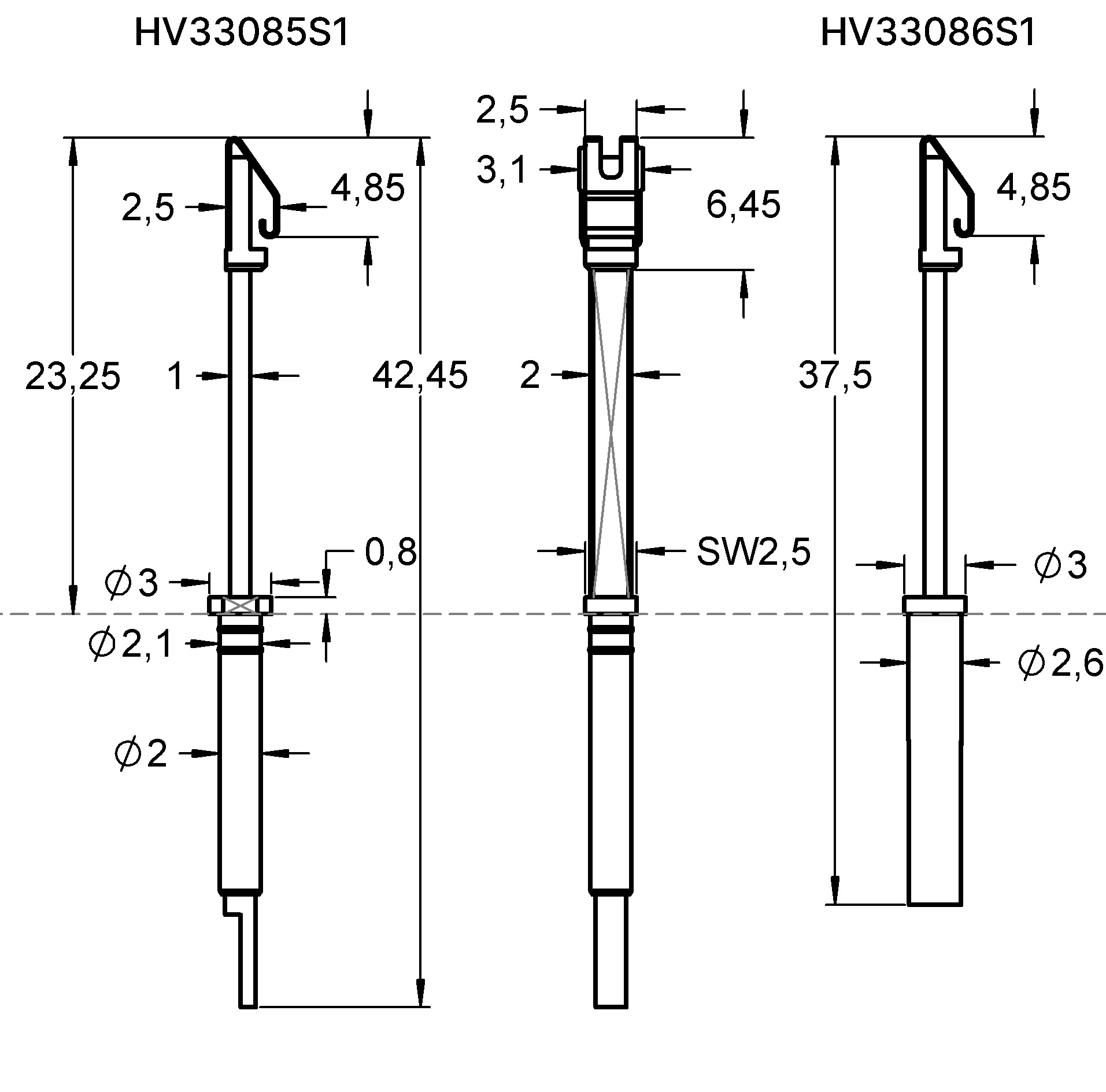

Graphics
Beschreibung des Produkts

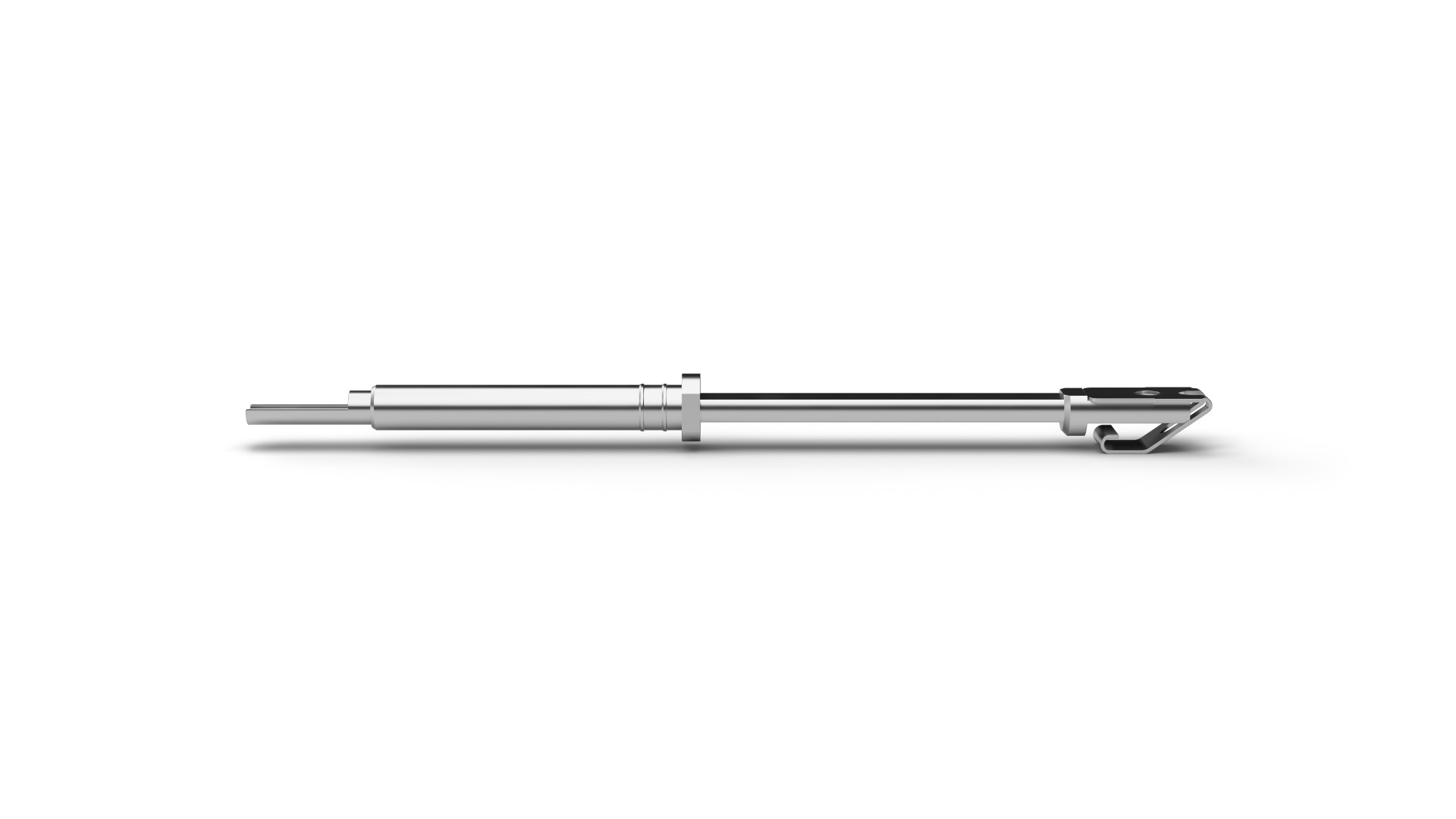

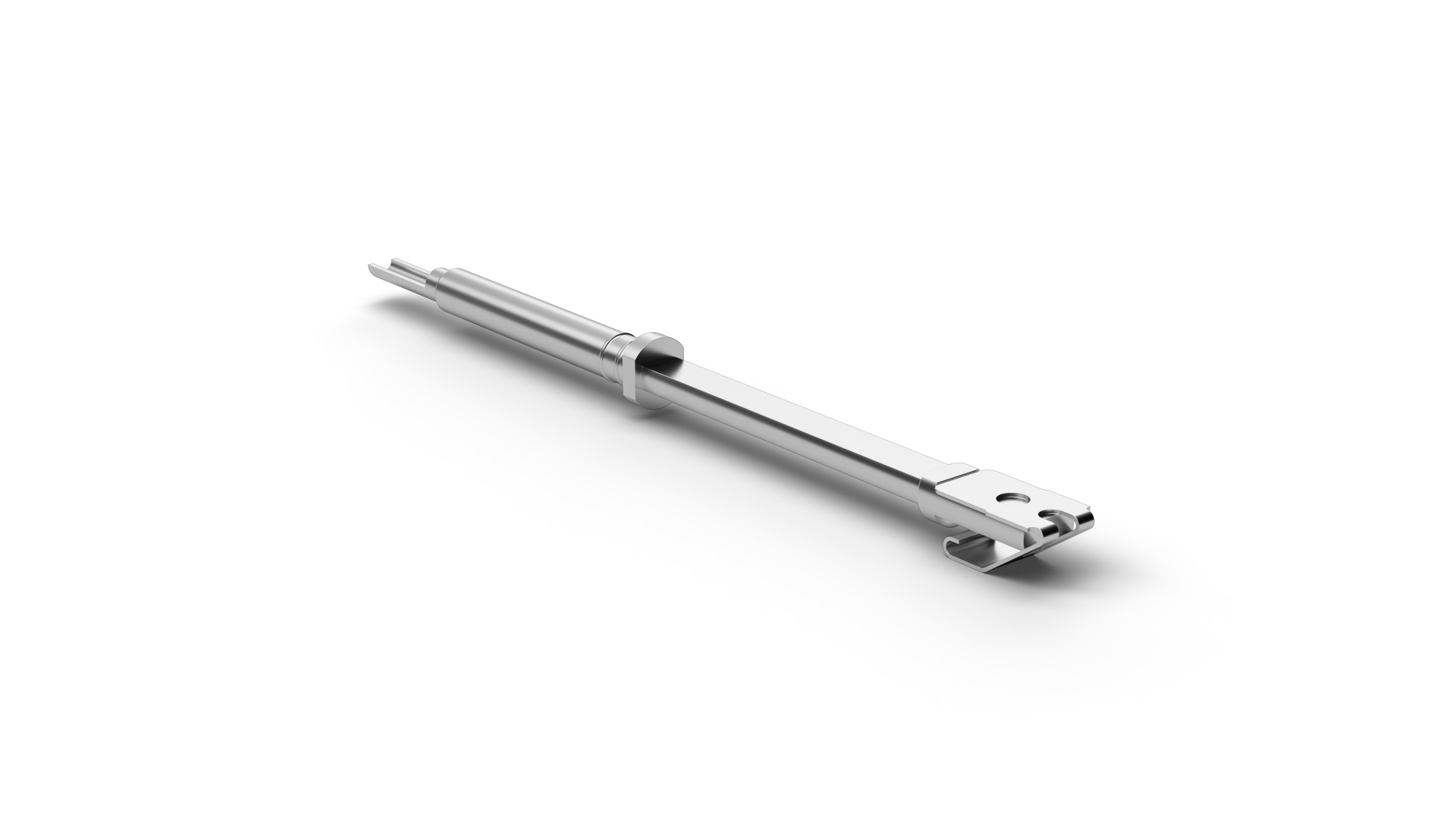

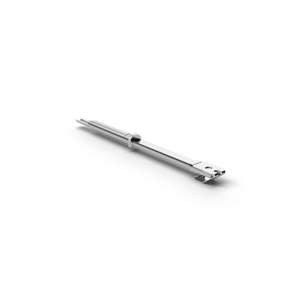

The special probe HV33085S1 (item number 1145678) belongs to the HV series and is intended for defined electrical contacting in test setups. The design of HV33085S1 provides repeatable contact with the DUT while accommodating mechanical tolerances within the fixture. HV33085S1 is specified for 5 A continuous current. The specified temperature range is -45 °C to +150 °C. Total length is 42.45 mm.
