Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F504 |
| Dimensions | |
|---|---|
| Total length (mm) | 21.7 |
| Protrusion height (mm) | 3.2 |
| Tip style diameter (mm) | 1.05 |
| Barrel diameter (mm) | 1.37 |
| Materials and surfaces | |
|---|---|
| Tip style | 18 |
| Tip style material | Beryllium copper |
| Tip style plating | Gold |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Nickel |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 40 |
| Spring force (cN) | 130 |
| Nominal travel (mm) | 2.4 |
| Maximum travel (mm) | 3.2 |
Graphics
Beschreibung des Produkts

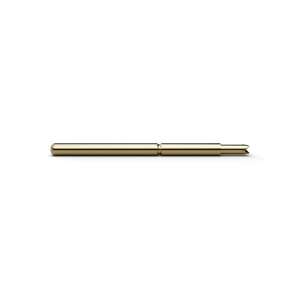

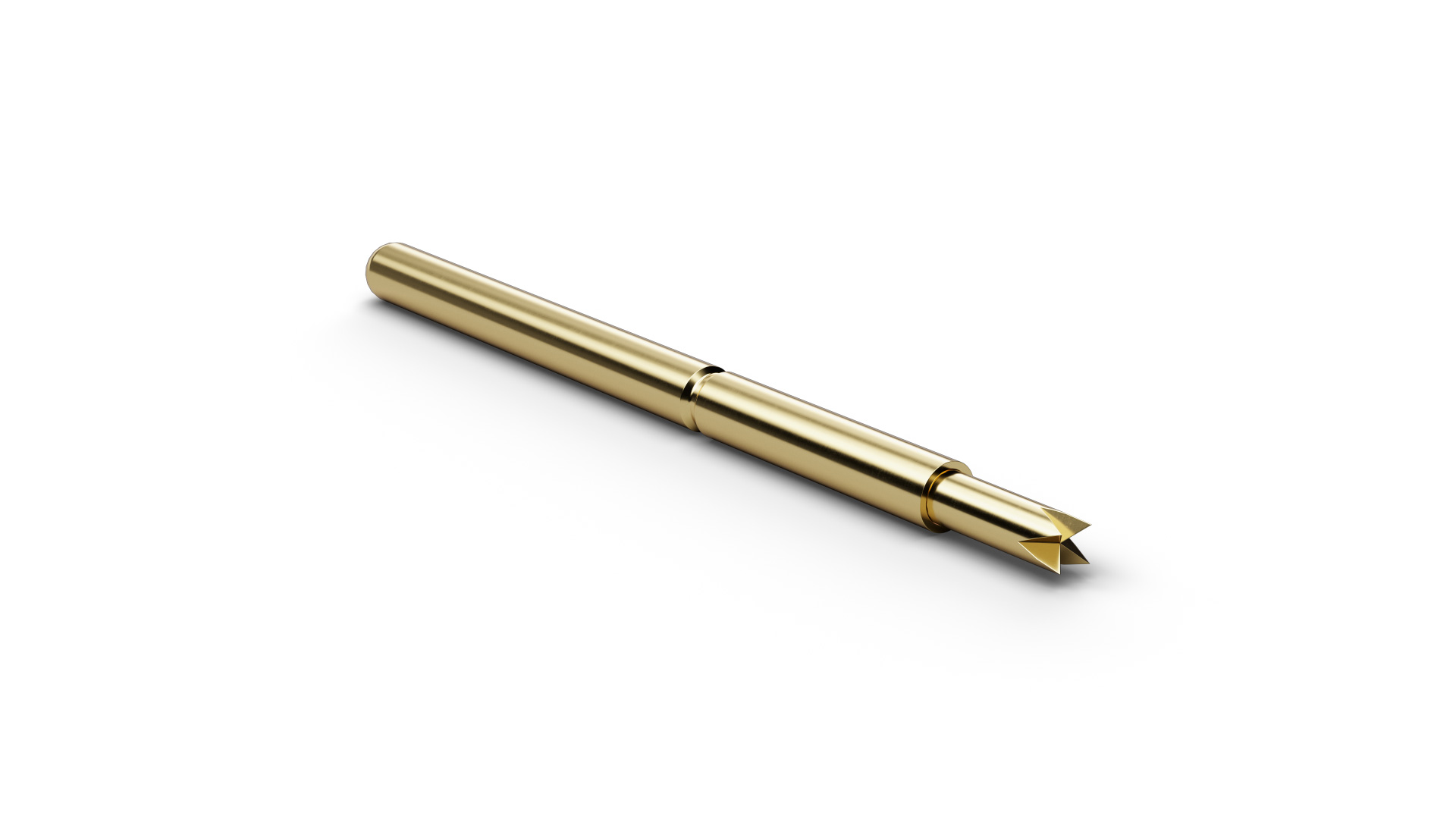

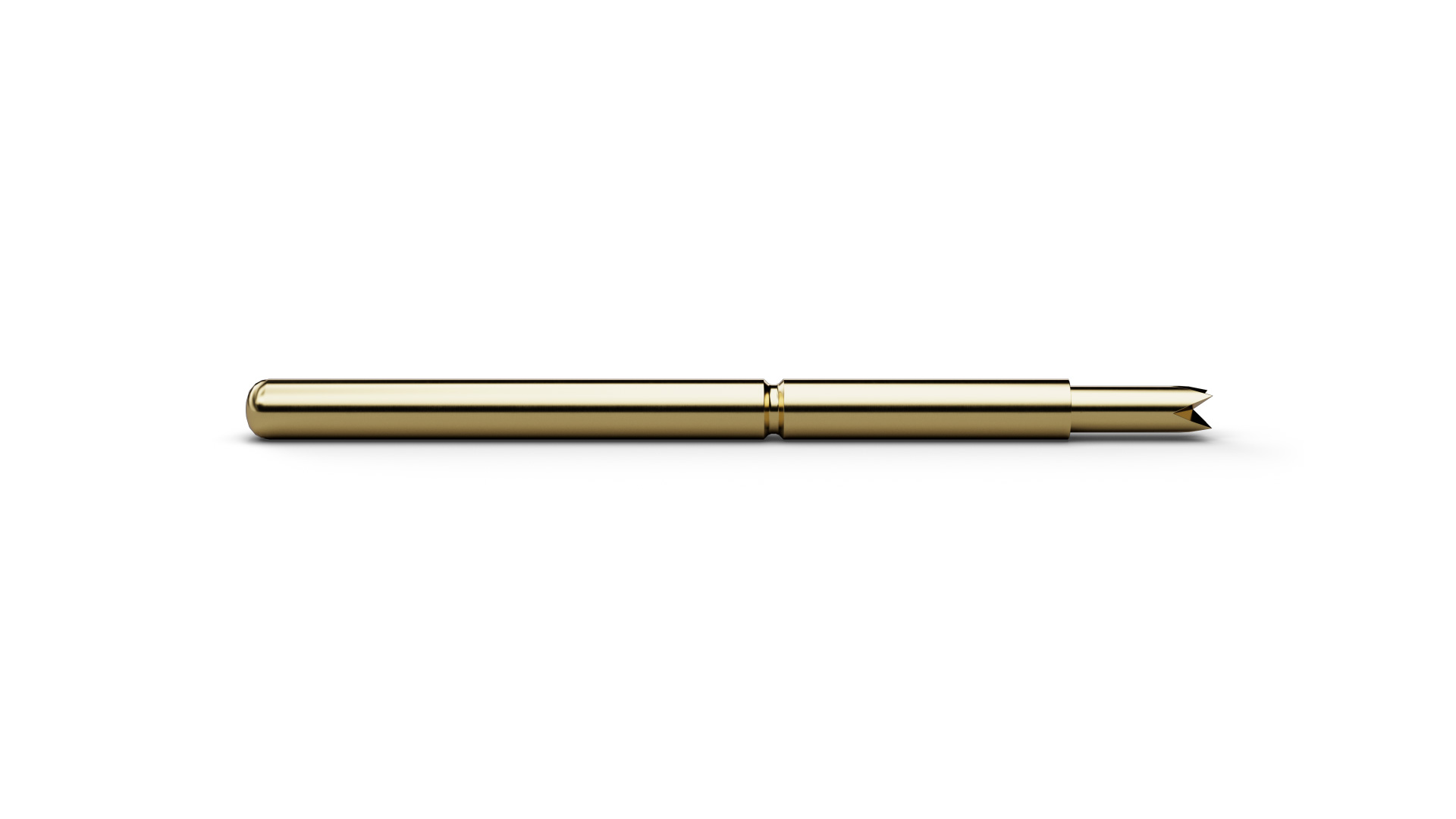

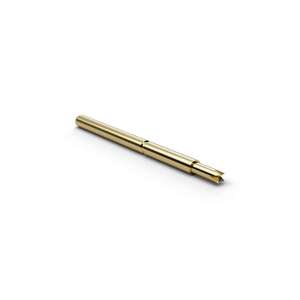

As an Interface Probe, F50418B105G130L217 (item number 1164315) provides a repeatable electrical connection within the test interface. F50418B105G130L217 provides a standardized contact or interface element for repeatable transfer of test and measurement signals between fixture and test system. Tip style 18 (Conical 30°) has a diameter of 1.05 mm. F50418B105G130L217 operates with 130 cN spring force and 2.4 mm nominal travel. The plunger in F50418B105G130L217 is made of beryllium copper and is gold-plated.
