Technical data
| General | |
|---|---|
| Type/family | H502 |
| Pitch (mm/mil) | 2,54 / 100 |
| Dimensions | |
|---|---|
| Total length (mm) | 33.9 |
| Press ring diameter (mm) | 1.8 |
| Outer diameter (mm) | 1.68 |
| Collar height (mm) | 0.7 |
| Materials and surfaces | |
|---|---|
| Material, Coating | Nickel silver, Gold |
| Mechanical specifications | |
|---|---|
| Connection | Wire Wrap |
Beschreibung des Produkts

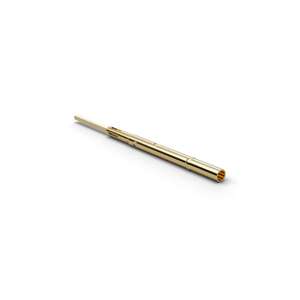

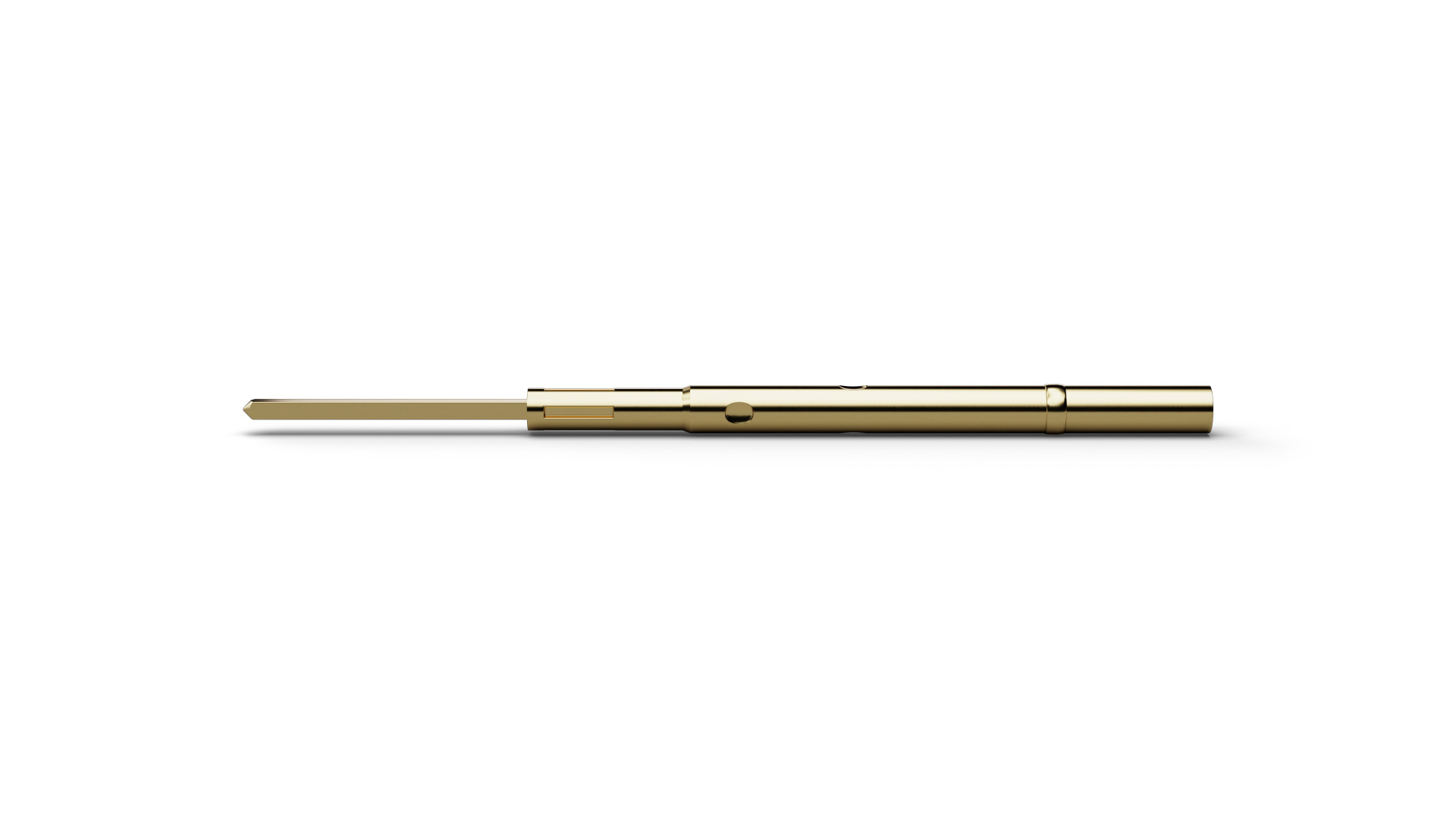

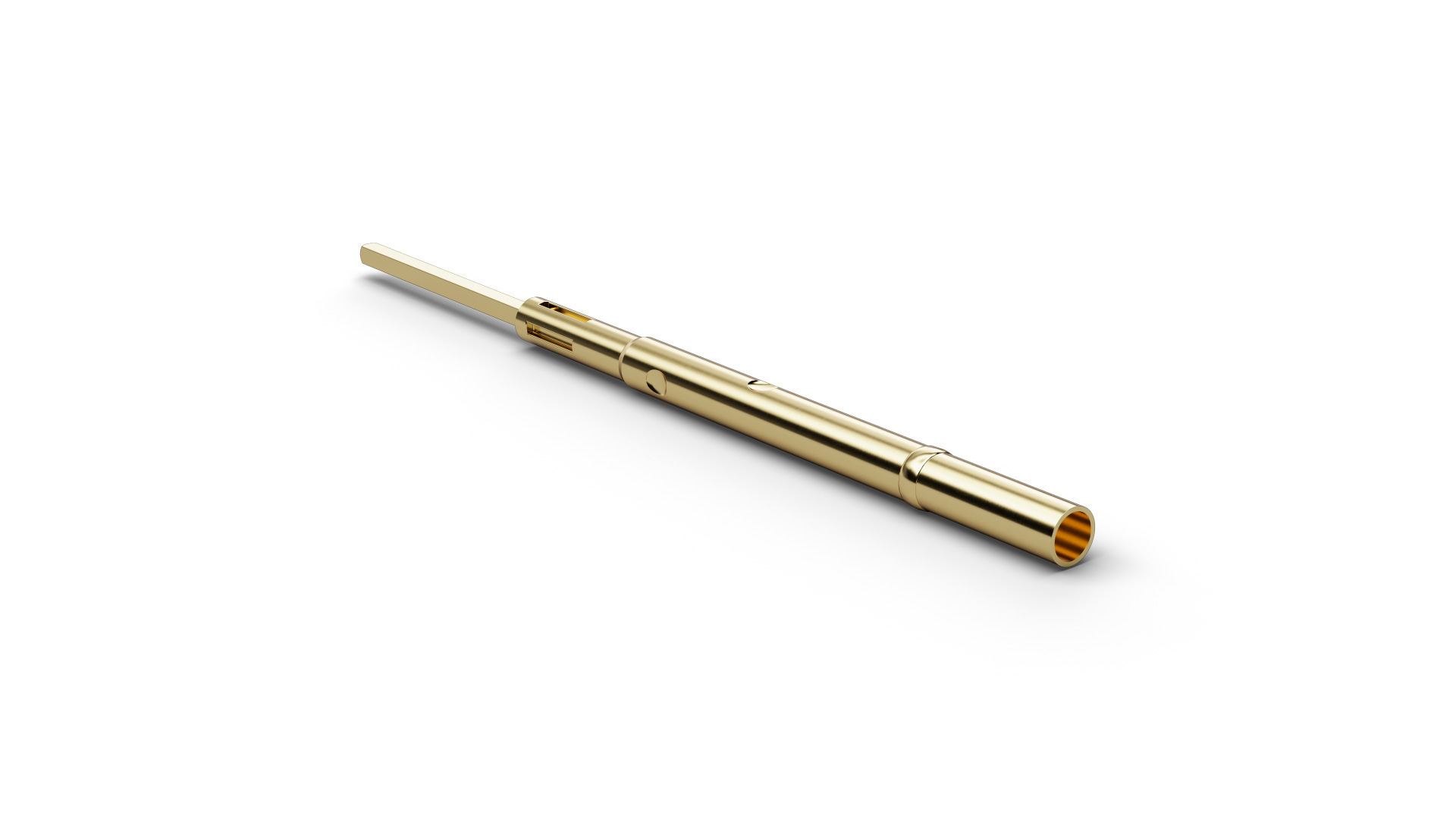

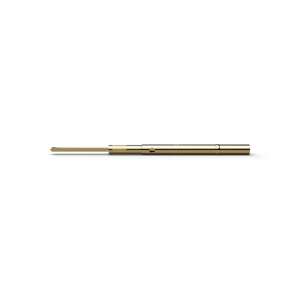

The receptacle H502WWS1 (item number 1164687) guides and positions a compatible Contact Probe in a defined location within the fixture or contacting assembly. The electrical connection of H502WWS1 uses a wire wrap. Key installation dimensions are outside diameter 1.68 mm, length 33.9 mm. The Receptacle H502WWS1 is designed for a pitch of 2.54 mm / 100 mil. The Receptacle H502WWS1 is made of nickel silver and is gold-plated.
