Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F100 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 35.4 |
| Protrusion height (mm) | 10.5 |
| Tip style diameter (mm) | 1.5 |
| Barrel diameter (mm) | 1.37 |
| Materials and surfaces | |
|---|---|
| Tip style | 28 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Nickel |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 30 |
| Spring force (cN) | 60 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 20 |
Graphics
Beschreibung des Produkts

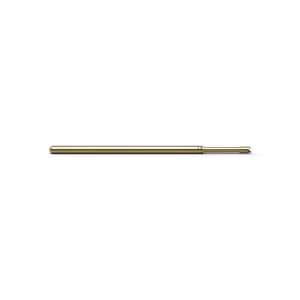

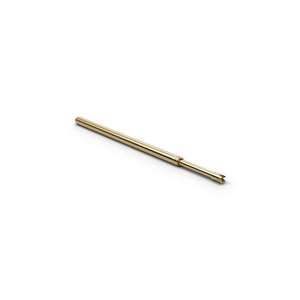

The Basic Contact Probe F10028S106L060L (item number 1167844) is designed for repeated contacting of test points in electronic test fixtures. With tip style 28 (4-point crown stepped), F10028S106L060L combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F10028S106L060L combines a pitch of 2.54 mm / 100 mil with tip style 28 (4-point crown stepped) and a tip diameter of 1.5 mm. For F10028S106L060L, spring force is 60 cN at a nominal travel of 4.3 mm. The continuous-current rating of F10028S106L060L is 5 A.
