Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F050 |
| Pitch (mm/mil) | 1,27 / 50 |
| Temperature | -45°C...+80°C |

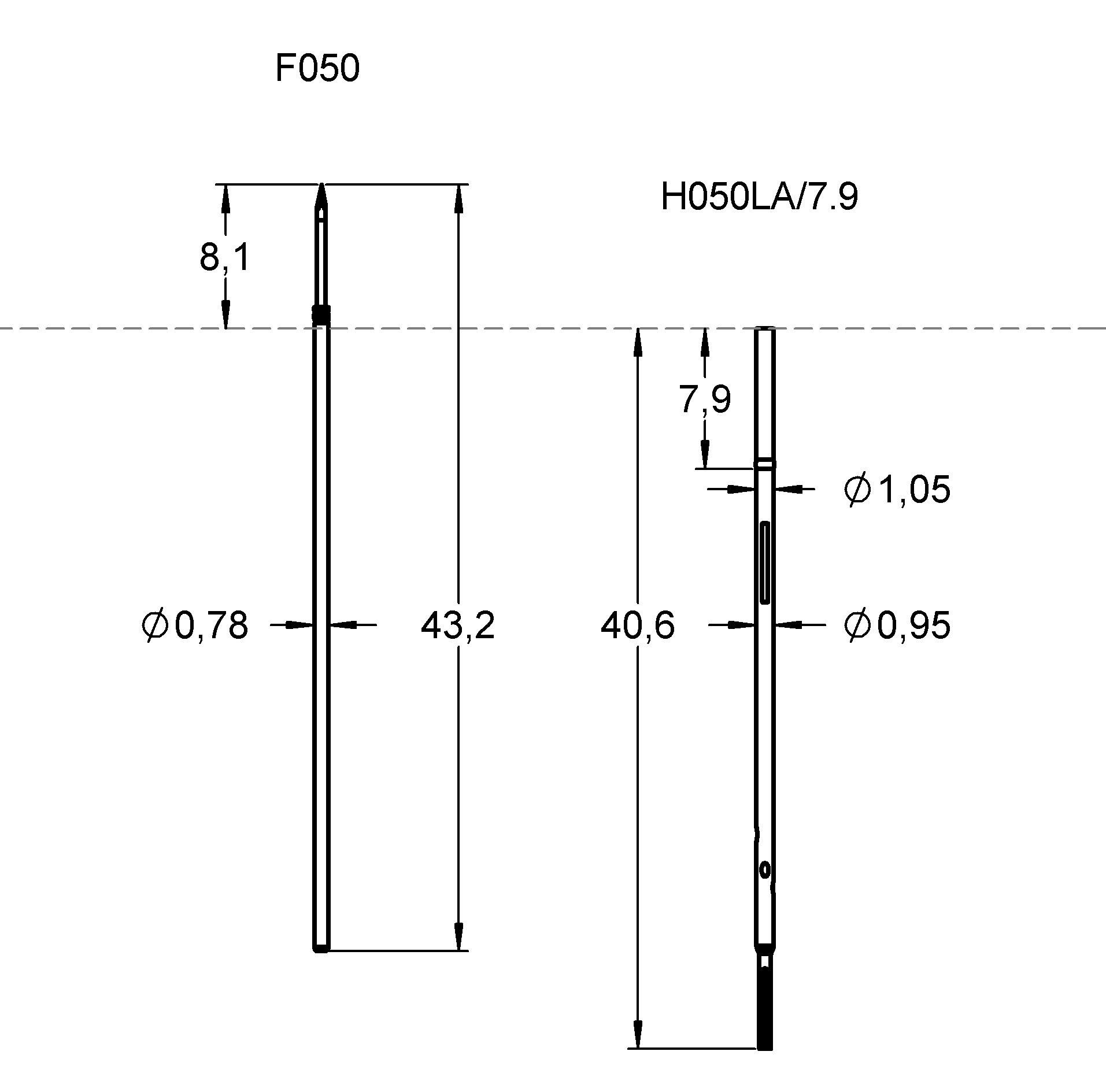

| Dimensions | |
|---|---|
| Total length (mm) | 43.2 |
| Protrusion height (mm) | 6.9 |
| Tip style diameter (mm) | 0.5 |
| Barrel diameter (mm) | 0.78 |
| Materials and surfaces | |
|---|---|
| Tip style | 11 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 90 |
| Spring force (cN) | 200 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.05 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 3 |
| Typical contact resistance (mOhm) | 20 |

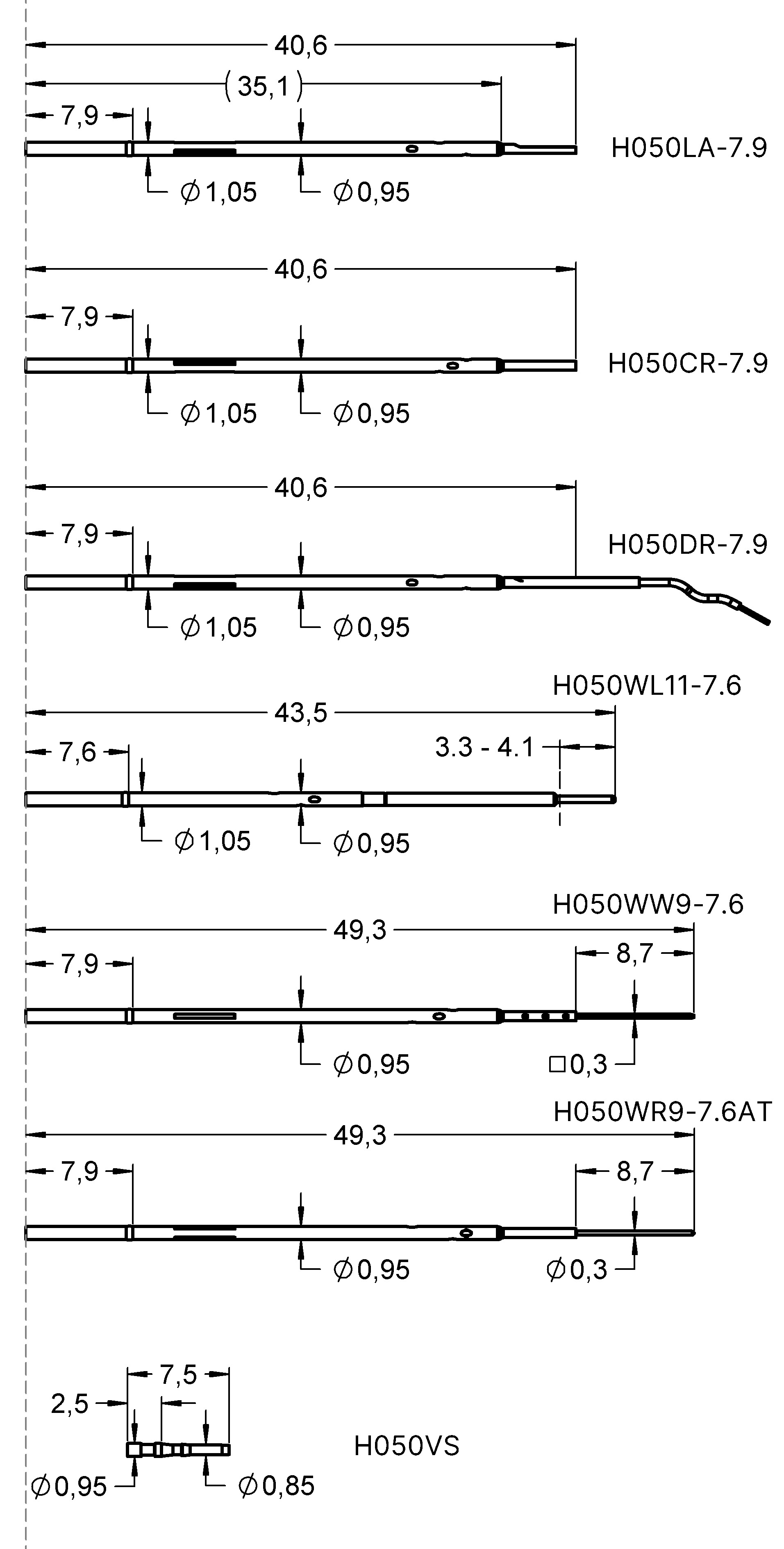

Graphics
Beschreibung des Produkts

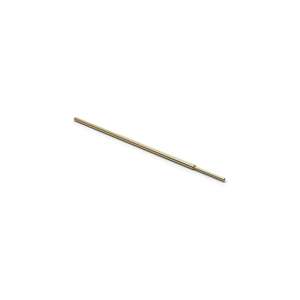

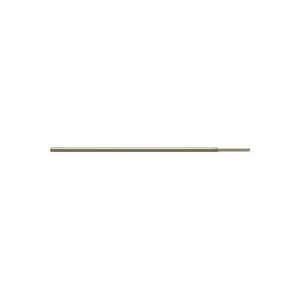

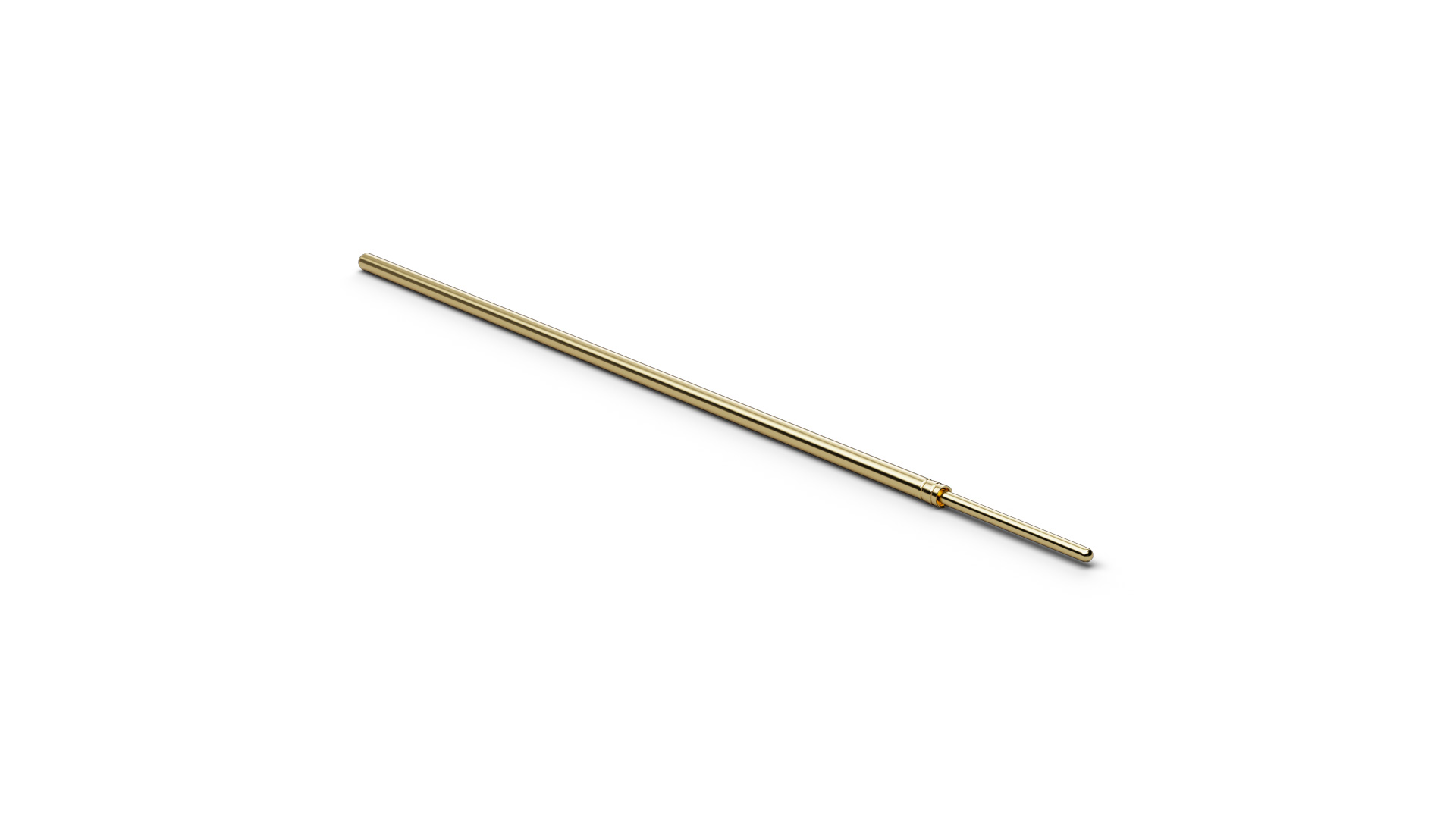

F05011B050G200 (item number 1169803) provides a Basic Contact Probe for defined electrical contact in ICT and Functional Test fixtures. With tip style 11 (Spherical), F05011B050G200 combines ICT/FCT use with a geometry intended for clean contact surfaces where marking or scratching should be minimized. F05011B050G200 combines a pitch of 1.27 mm / 50 mil with tip style 11 (Spherical) and a tip diameter of 0.5 mm. F05011B050G200 operates with 200 cN spring force and 4.3 mm nominal travel. F05011B050G200 is specified for 3 A continuous current.
