Technical data
| General | |
|---|---|
| Structure | Double Plunger Probe |
| Type/family | FP-D |
| Pitch (mm/mil) | 0,80 / 31 |
| Temperature | -45°C...+150°C |
| Dimensions | |
|---|---|
| Total length (mm) | 8.7 |
| Protrusion height (mm) | 1.5 |
| Tip style diameter (mm) | 0.38 |
| Barrel diameter (mm) | 0.59 |
| Tip style diameter (mm) 2 | 0.3 |
| Materials and surfaces | |
|---|---|
| Tip style | 29 |
| Tip style 2 | 03 |
| Plunger material | Steel |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Gold |
| Plunger material 2 | Steel |
| Plunger plating 2 | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 10 |
| Spring force (cN) | 35 |
| Nominal travel (mm) | 0.75 |
| Maximum travel (mm) | 1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 2.5 |
| Frequency (GHz) | 10.6 |
Graphics
Beschreibung des Produkts

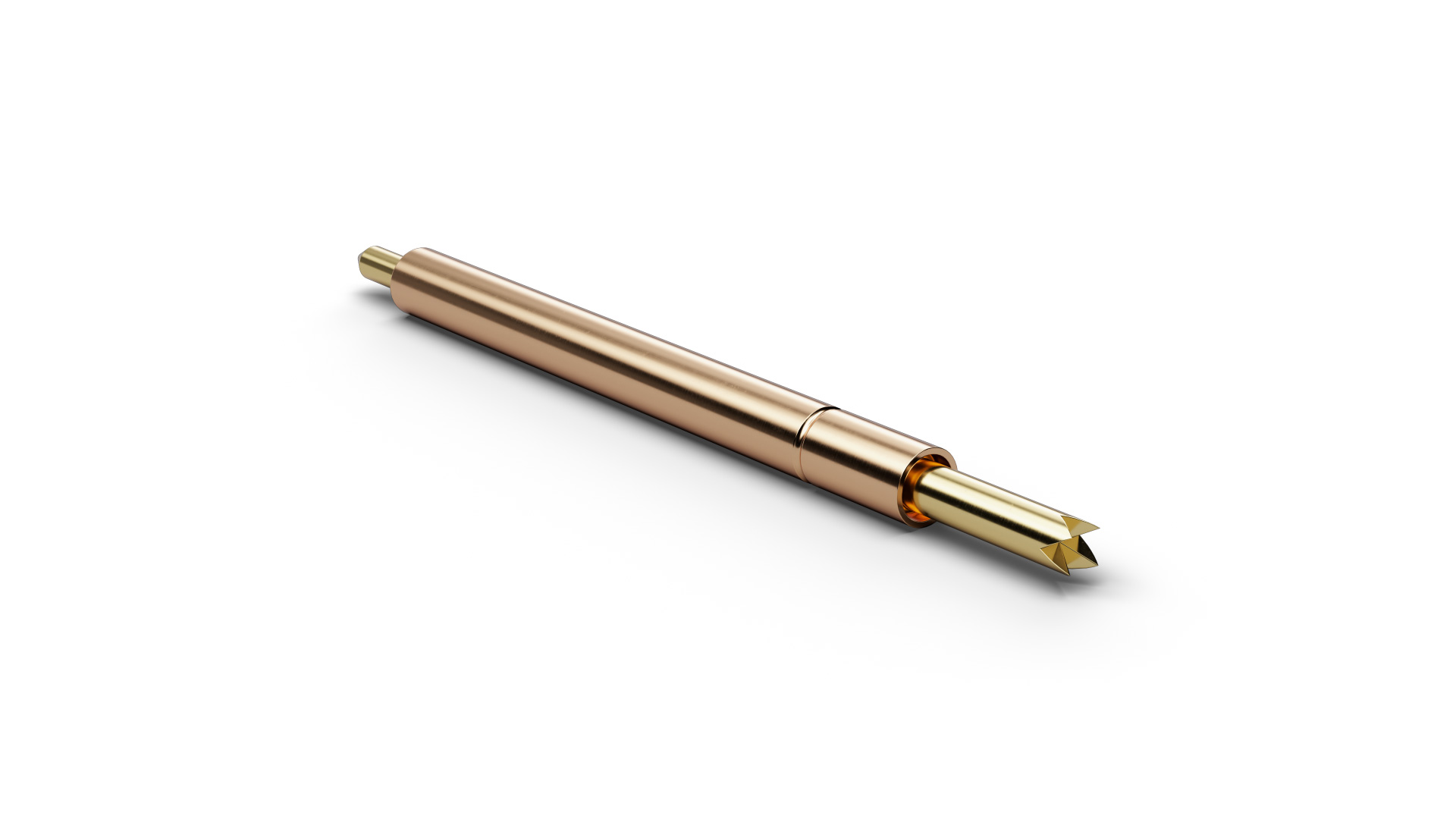

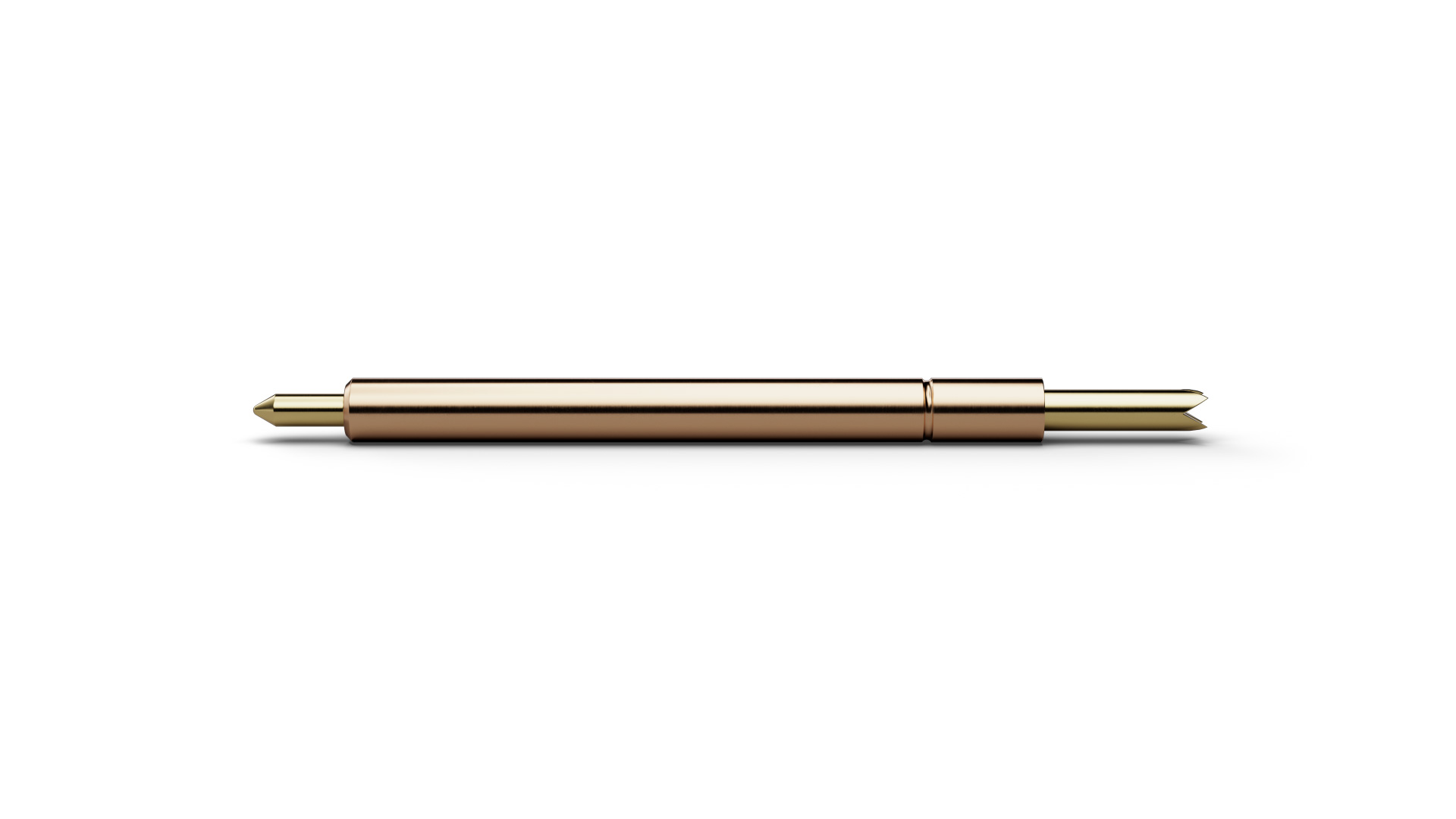

The Fine Pitch Double Plunger Probe FP590D2903S038G035L087 (item number 1023462) is designed for precise contacting where installation space is limited. Tip style 29 (4-point crown) targets FP590D2903S038G035L087 at solder bumps and pads; Fine Pitch Probes are used, among other applications, in semiconductor final test, WLCSP solutions, MEMS and micro-PCB testing. In FP590D2903S038G035L087, the double-plunger design provides spring-loaded contacting on both sides and can compensate for mechanical tolerances in compact interfaces. Key design data for FP590D2903S038G035L087 includes pitch 0.8 mm / 31 mil, spring force 35 cN, continuous current 2.5 A.
