Technical data
| General | |
|---|---|
| Structure | Double Plunger Probe |
| Type/family | FP-DF |
| Pitch (mm/mil) | 0,30 / 12 |
| Temperature | -45°C...+120°C |

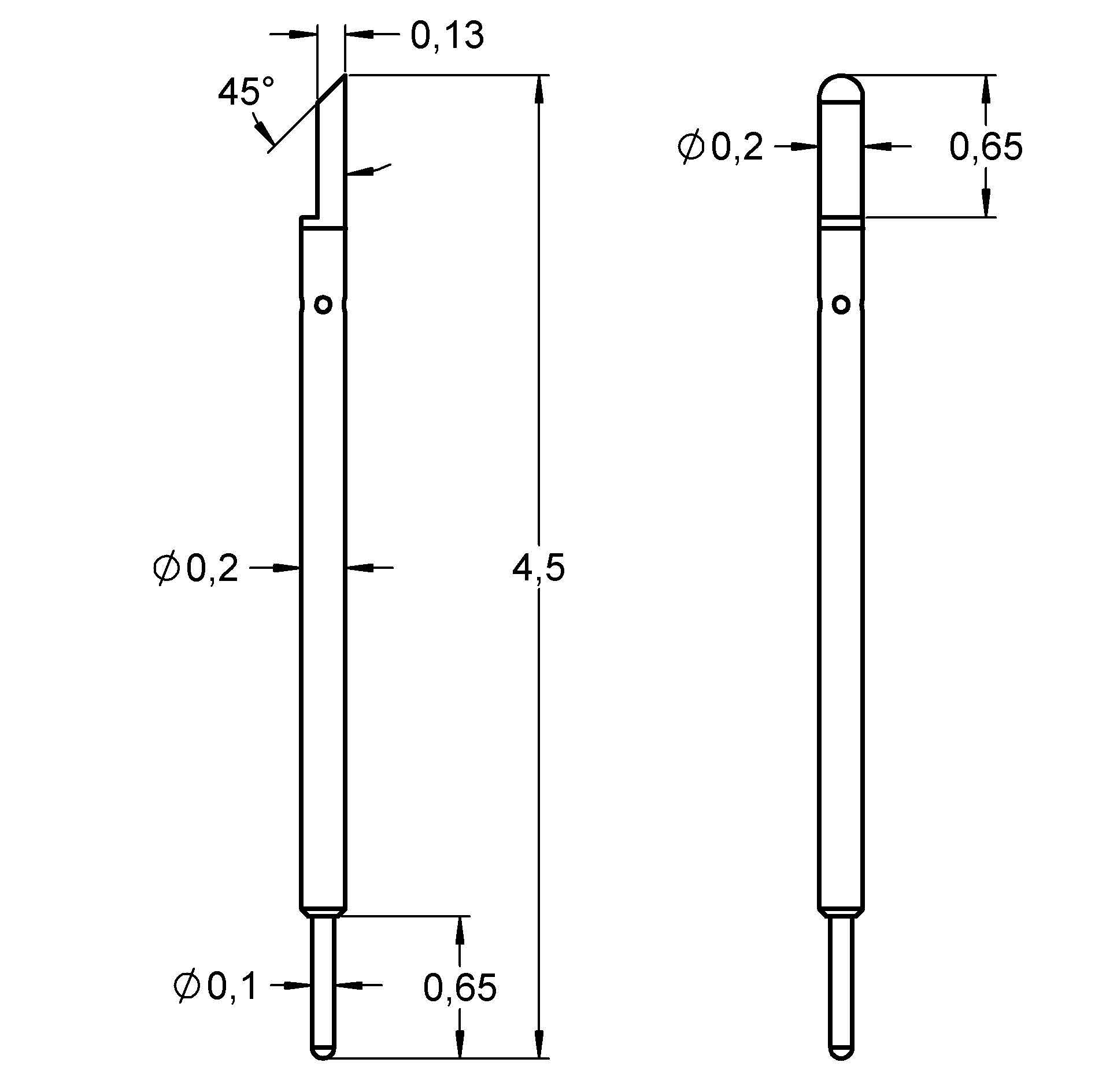

| Dimensions | |
|---|---|
| Total length (mm) | 4.5 |
| Protrusion height (mm) | 0.65 |
| Tip style diameter (mm) | 0.2 |
| Barrel diameter (mm) | 0.2 |
| Tip style diameter (mm) 2 | 0.1 |
| Materials and surfaces | |
|---|---|
| Tip style | 71 |
| Tip style 2 | 11 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Nickel |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Plunger material 2 | Beryllium copper |
| Plunger plating 2 | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 10 |
| Spring force (cN) | 15 |
| Nominal travel (mm) | 0.3 |
| Maximum travel (mm) | 0.45 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 0.7 |
| Typical contact resistance (mOhm) | 500 |
| Frequency (GHz) | 18.8 |
Graphics
Beschreibung des Produkts

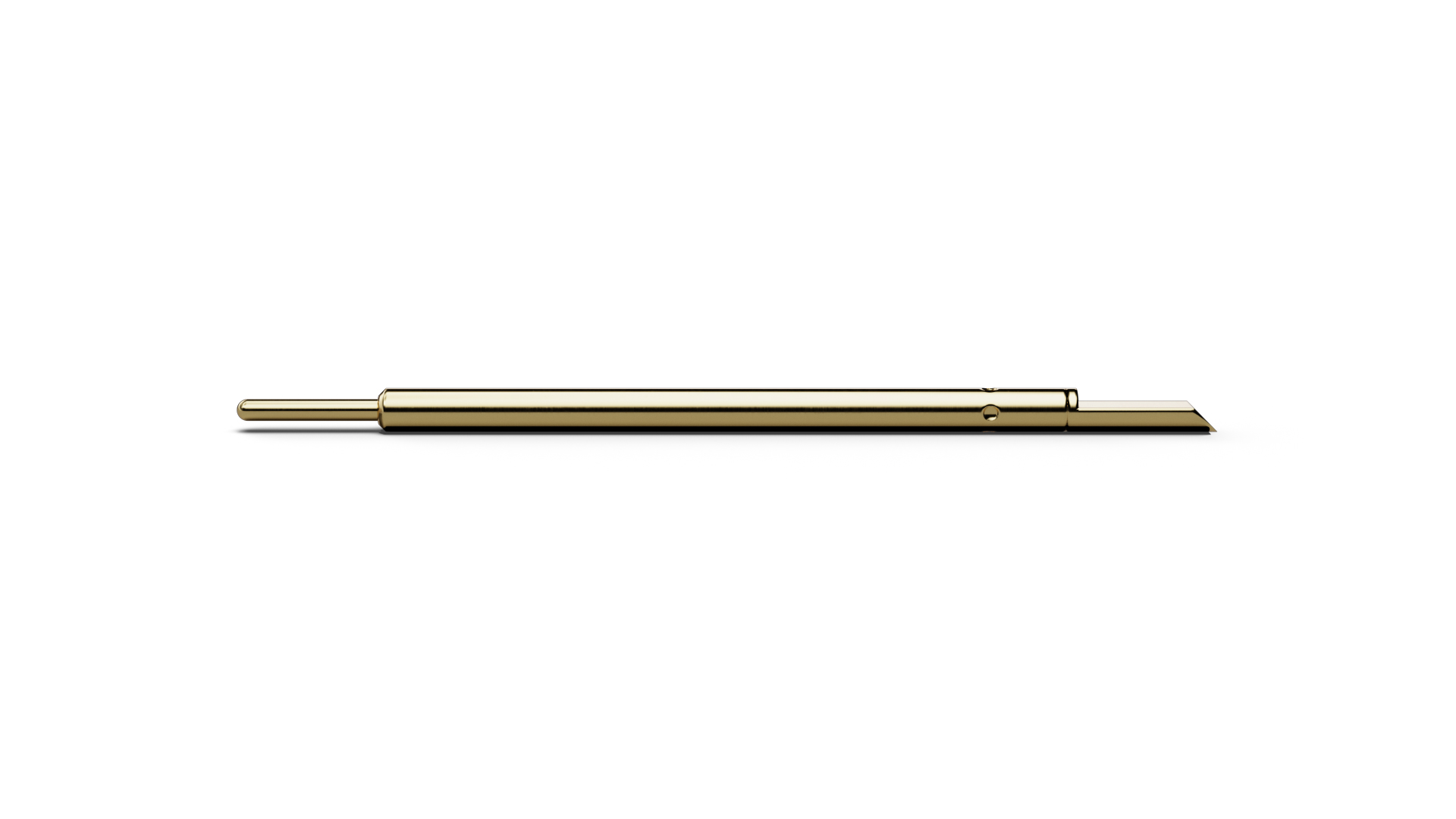

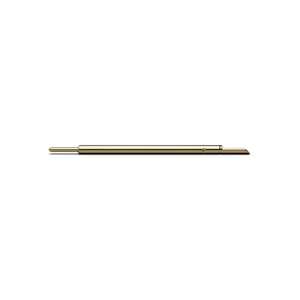

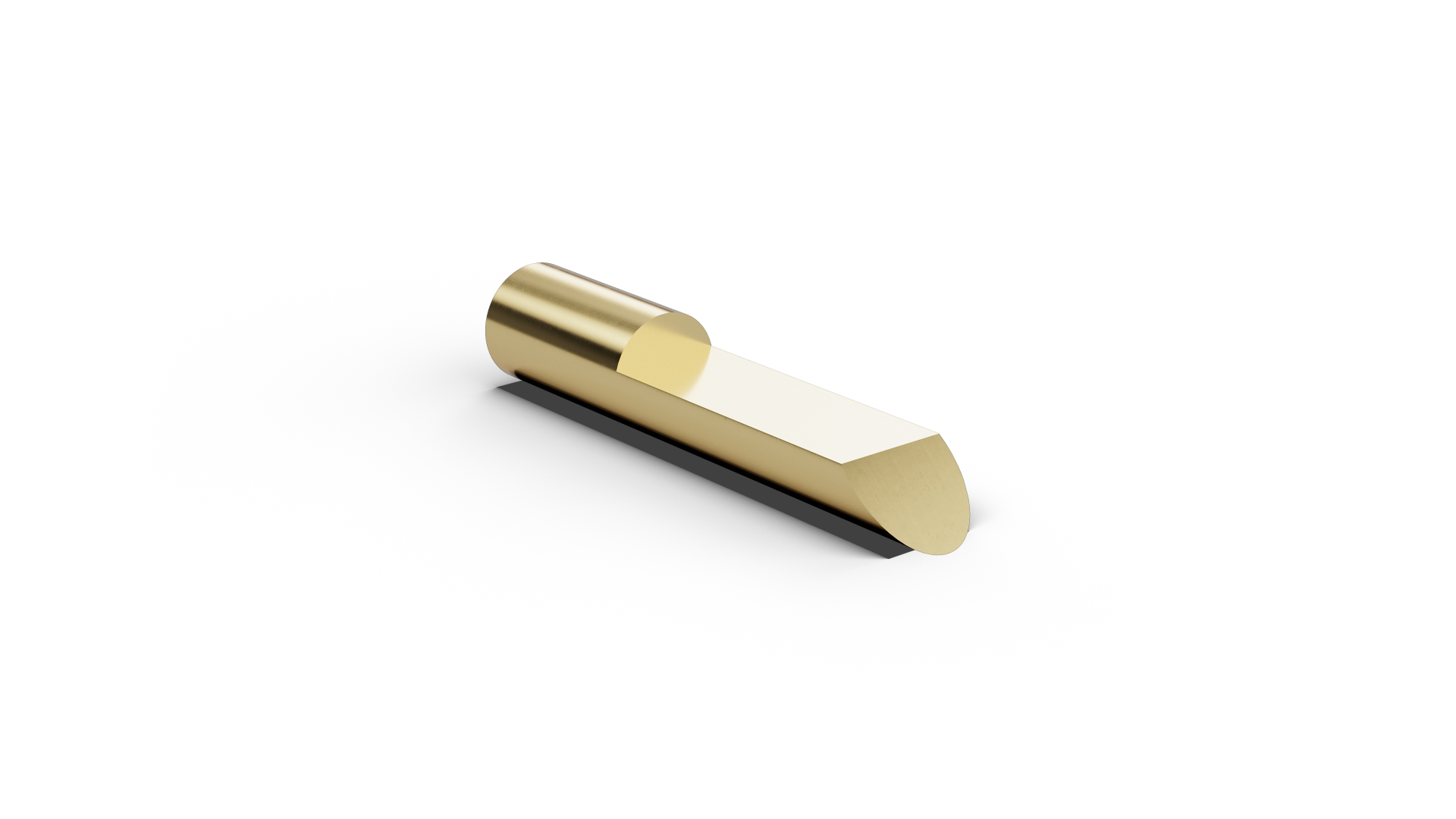

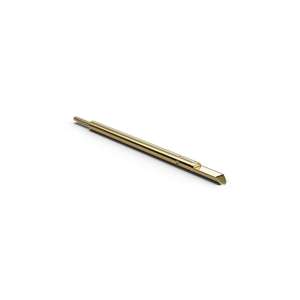

The Fine Pitch Double Plunger Probe FP200DF7111B020G015L045 (item number 1024610) is designed for precise contacting where installation space is limited. Tip style 71 (Half Moon) targets FP200DF7111B020G015L045 at Kelvin measurements at very small pitches with anti-rotation alignment provided by the hole pattern; Fine Pitch Probes are used, among other applications, in semiconductor final test, WLCSP solutions, MEMS and micro-PCB testing. In FP200DF7111B020G015L045, the double-plunger design provides spring-loaded contacting on both sides and can compensate for mechanical tolerances in compact interfaces. Key design data includes pitch 0.3 mm / 12 mil, spring force 15 cN, continuous current 0.7 A.
